7D-FB 50 Ohm Low Loss RF Coaxial Cable

Quote Now

Specification

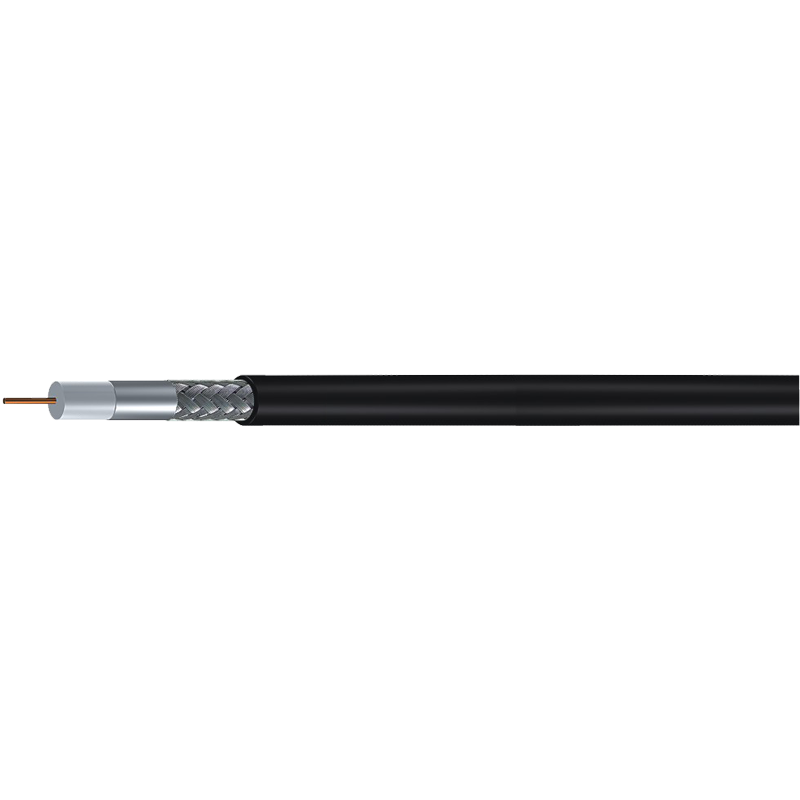

Physical Construction and Dimensions

No.	Item	Material	Notes
?	Center Conductor	Bare Copper or Copper Clad Aluminum	2.60mm
?	Dielectric	Gas Injected Foam PE	7.30mm
?	1^st?Shield	Aluminum Foil	7.40mm
?	2^nd?Shield	Tinned Copper or Aluminum Braid Wire	8.20mm
?	Jacket	PVC or PE	9.80mm

Mechanical and Environmental Characteristics

Minimum Bending Radius		45mm
Tensile Strength		72.6kg
Operating Temperature（PVC）		-40°C~80°C
Operating Temperature（PE）		-55°C~85°C

Electrical Characteristics

Maximum DC Resistance of Center Conductor@20°C	3.3/5.2 Ω/km
Dielectric Withstand Voltage	AC 1000 V/min
Minimum Insulation Resistance	1000 MΩkm
Nominal Velocity of Propagation	82%
Nominal Capacitance	85 pF/m
Impedance	50±2 Ω
Standing Wave Ratio (SWR) 150-3000MHz	≤1.2
Shielding Effectiveness	>90dB

Attenuation @ 20°C

Frequency(MHz)	Max Value(dB/100m)
150	5.4
200	6.3
280	7.5
350	8.4
400	9.0
800	12.8
900	14.1
1200	16.8
1500	19.2
1900	22.4
2000	23.2
2400	25.7
3000	29.5

Certificates & Honor

Our products have UL, ETL, JIS, CE, CPR, RoHS and REACH certification

Get An Inquiry

Company Profile

Zhejiang CommSpace Cable Co., Ltd.

As 7D-FB 50 Ohm Low Loss RF Coaxial Cable Manufacturers, Zhejiang CommSpace Cable Co., Ltd. was established in 2001 with total 66,600㎡ manufacturing area, located in Zhuji city, Zhejiang Province, close to Ningbo and Shanghai Seaport, near Hangzhou International Airport.

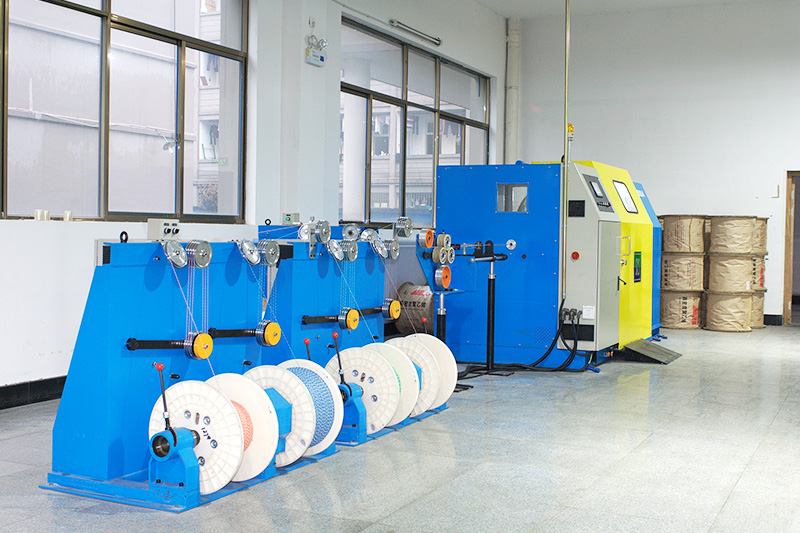

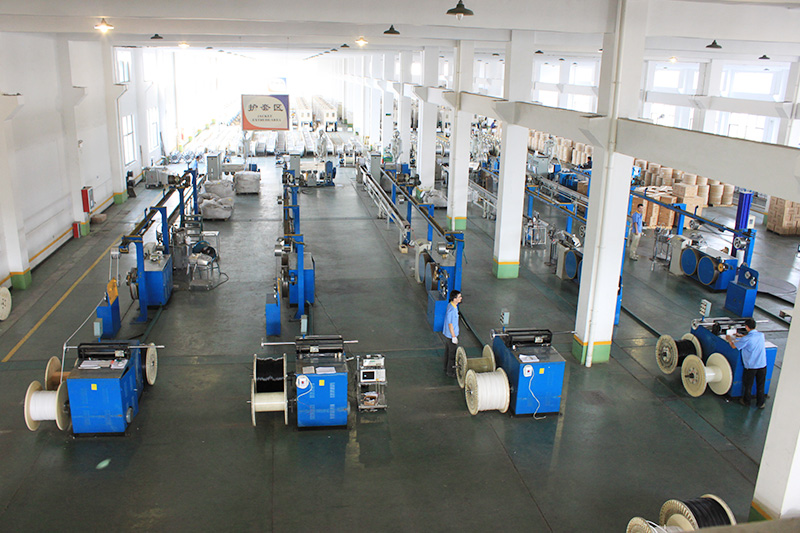

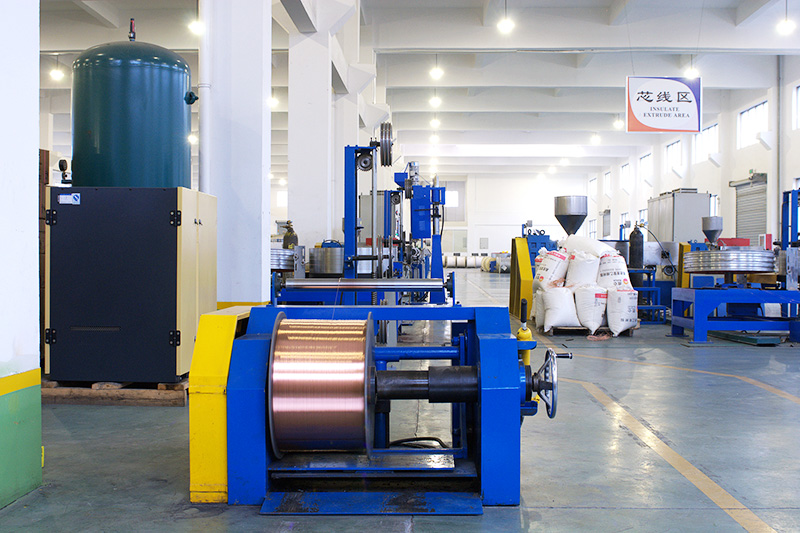

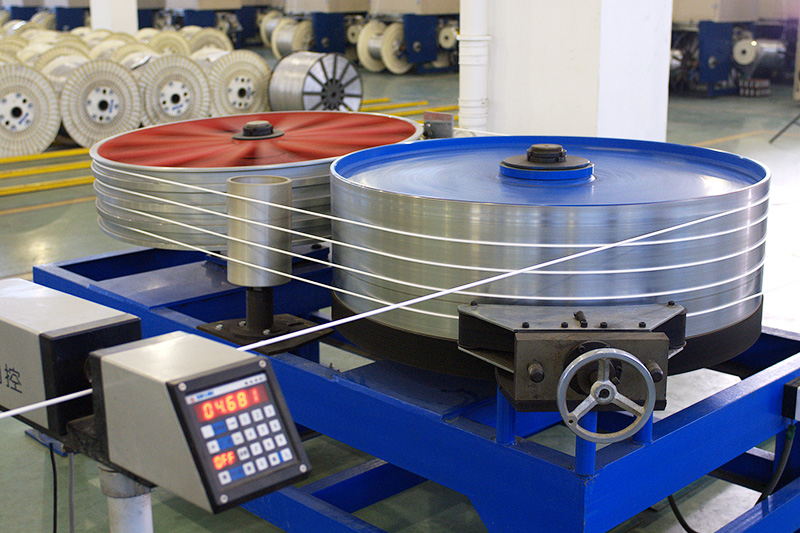

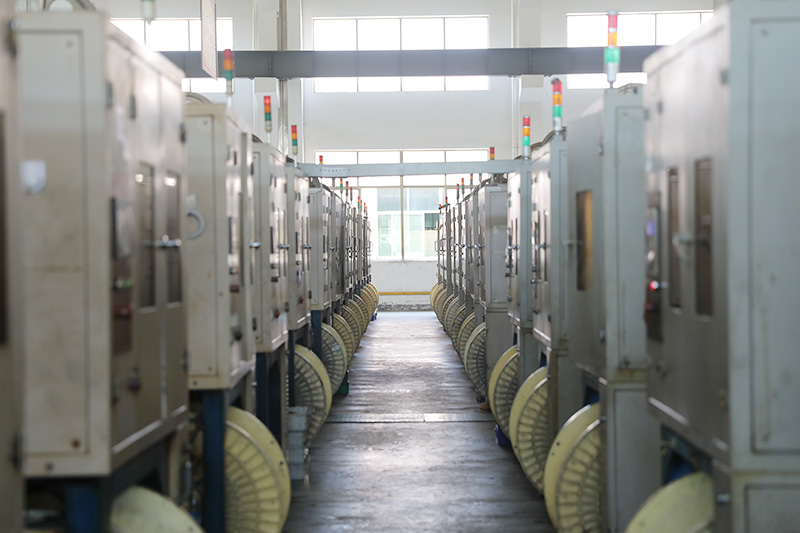

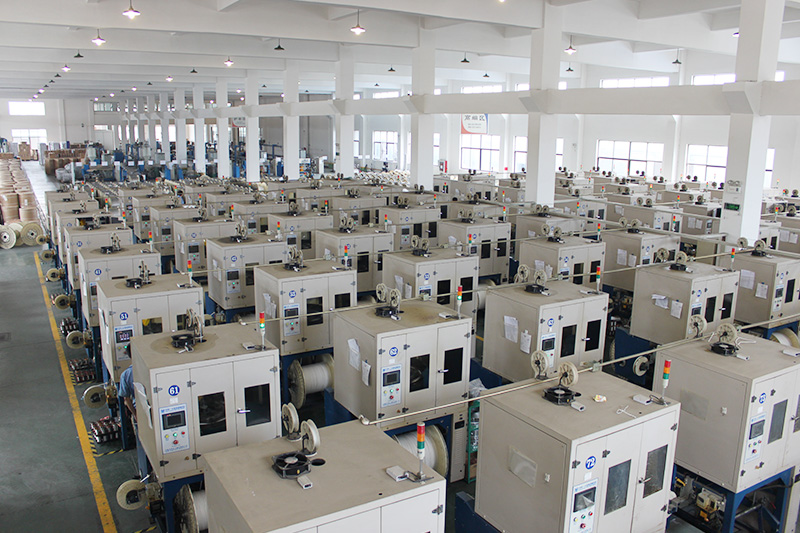

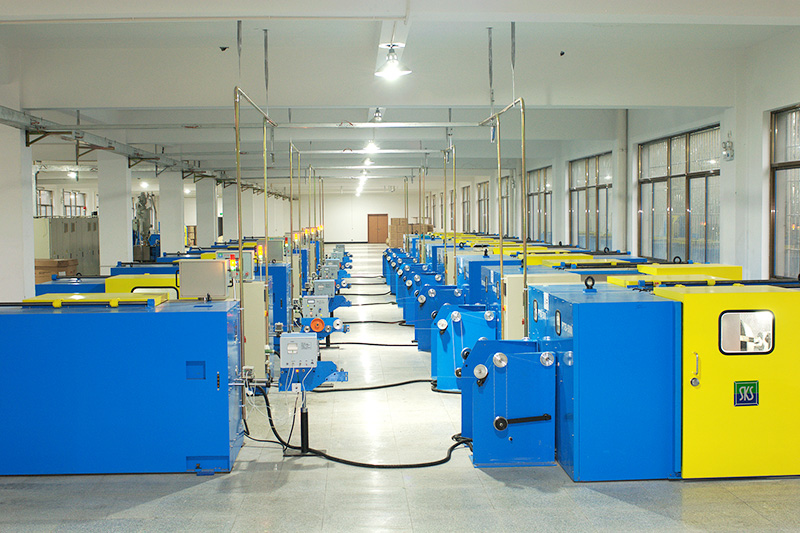

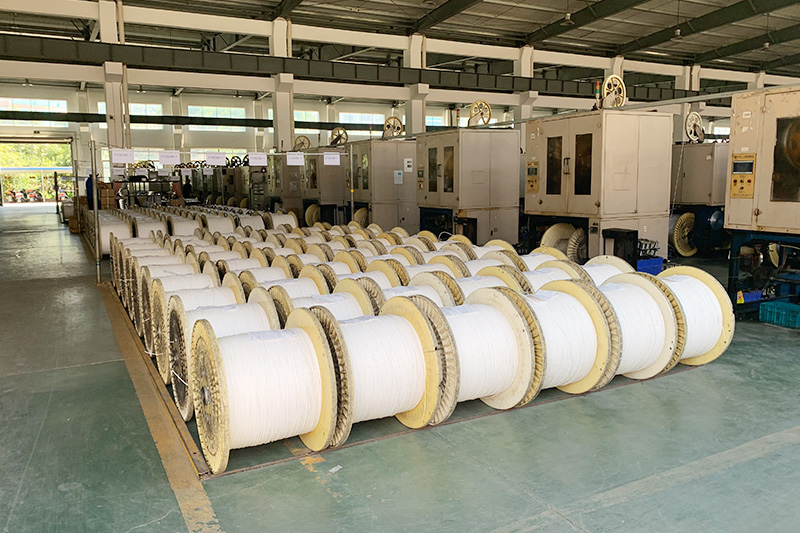

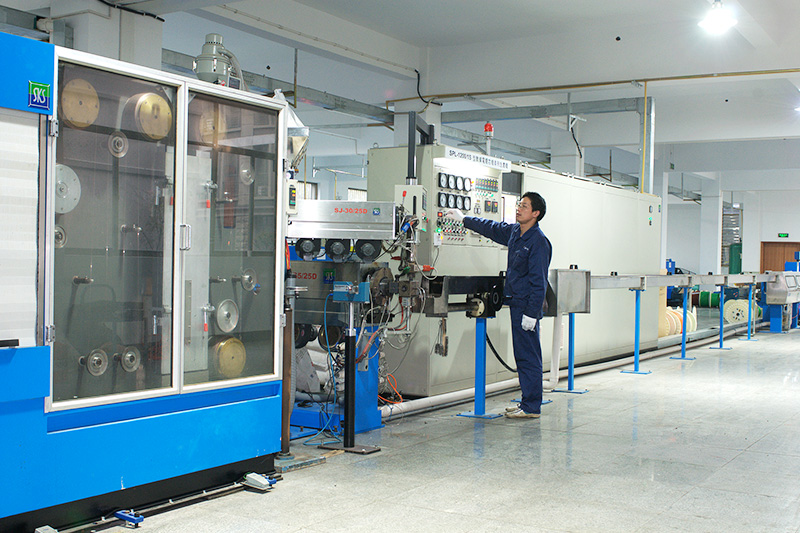

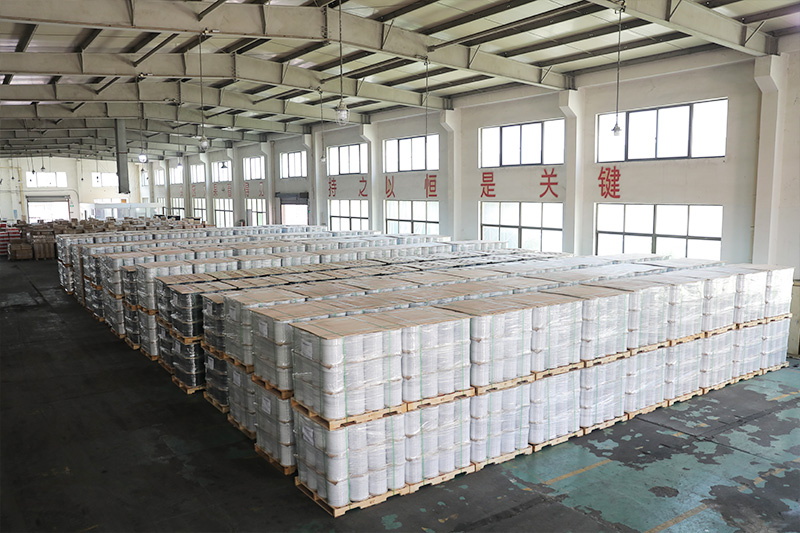

CommSpace Cable is a world-class manufacturer specializes in high performance and high quality coaxial cable, data cable, speaker cable, alarm cable, telephone cable, etc. We are ISO9001, ISO14001 and JIS certified enterprise. We have 12 high pressure gas injected physical foaming production lines, 330 high speed braiding machines and 12 thermoplastic jacket extrusion production lines. The annual production capacity exceeds 350,000 kms.

CommSpace Cable focuses on compliance and applying technical innovation and continuous improvement to the products that meet various international standards. As Custom 7D-FB 50 Ohm Low Loss RF Factory, our 7D-FB 50 Ohm Low Loss RF Coaxial Cable have UL, ETL, JIS, CE, CPR, RoHS and REACH certification and have been exported to more than 90 countries and regions in the fields of Satellite TV (DISH TV/DTH), DTV, CCTV, CATV, MATV, IPTV, SMATV, LTE, broadband network and wireless network.

Focus on Quality and Keep Innovating

CommSpace has a strong technical force and R&D team composed of more than 20 professional technicians. Benefiting from the comprehensive mastery of cable production technology, we have the ability to consider more for our customers and better balance the relationship between product value and procurement cost. CommSpace Cable is committed to optimizing the electrical, mechanical and environmental performance of products, pay special attention to providing environmental protection products, to improve the safety, reliability and stability of products.

CommSpace has implemented a very strict Quality Management System. As World-class China custom 7D-FB 50 Ohm Low Loss RF Coaxial Cable Manufacturers, From the purchasing of raw materials to production, inspection, packing and shipment, all stages are strictly controlled in order to fully guarantee the quality, strive to make every effort to be perfect.

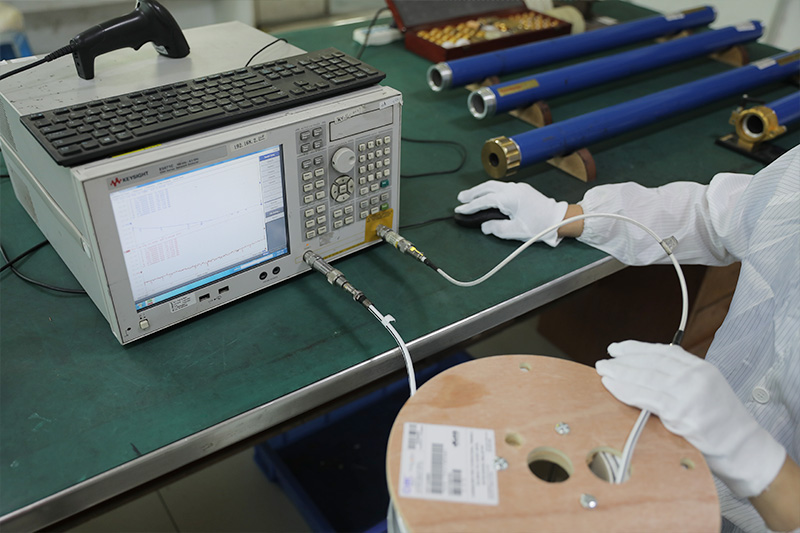

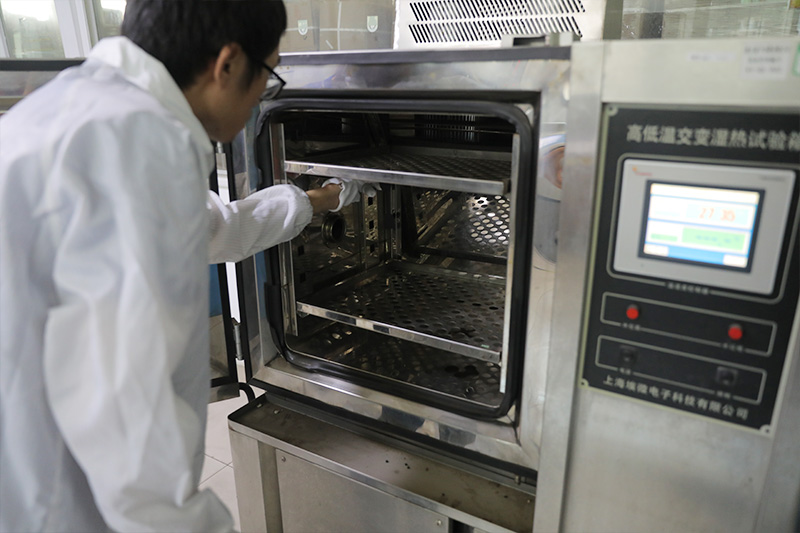

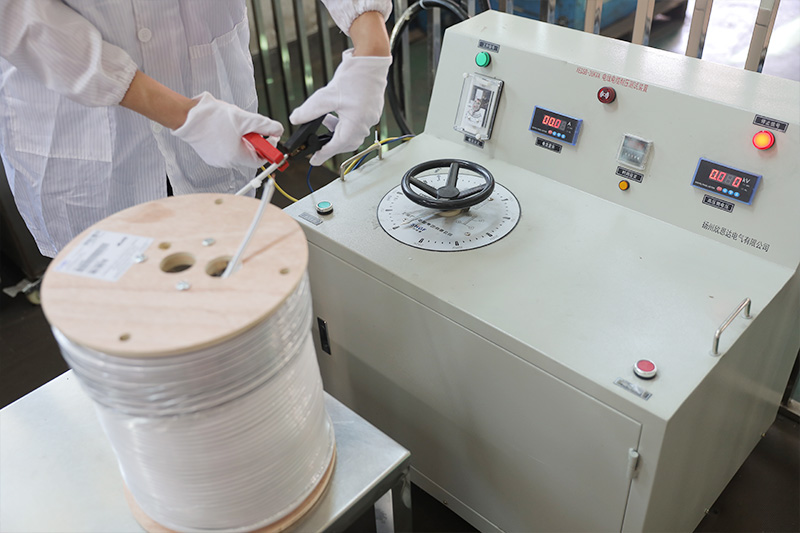

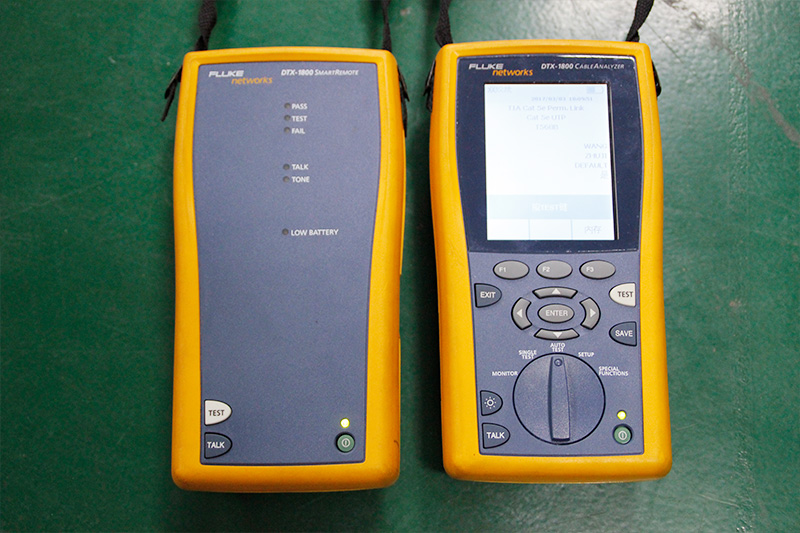

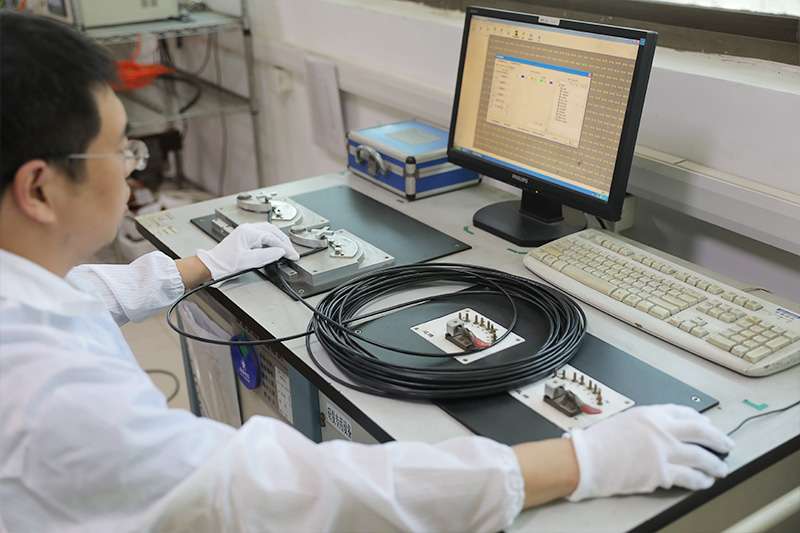

CommSpace has advanced laboratory and testing equipment, a strong and rigorous Quality Assurance Department, a complete set of ERP and barcode traceability system, which are conductive to ensuring quality and enhancing customer satisfaction and trust.
